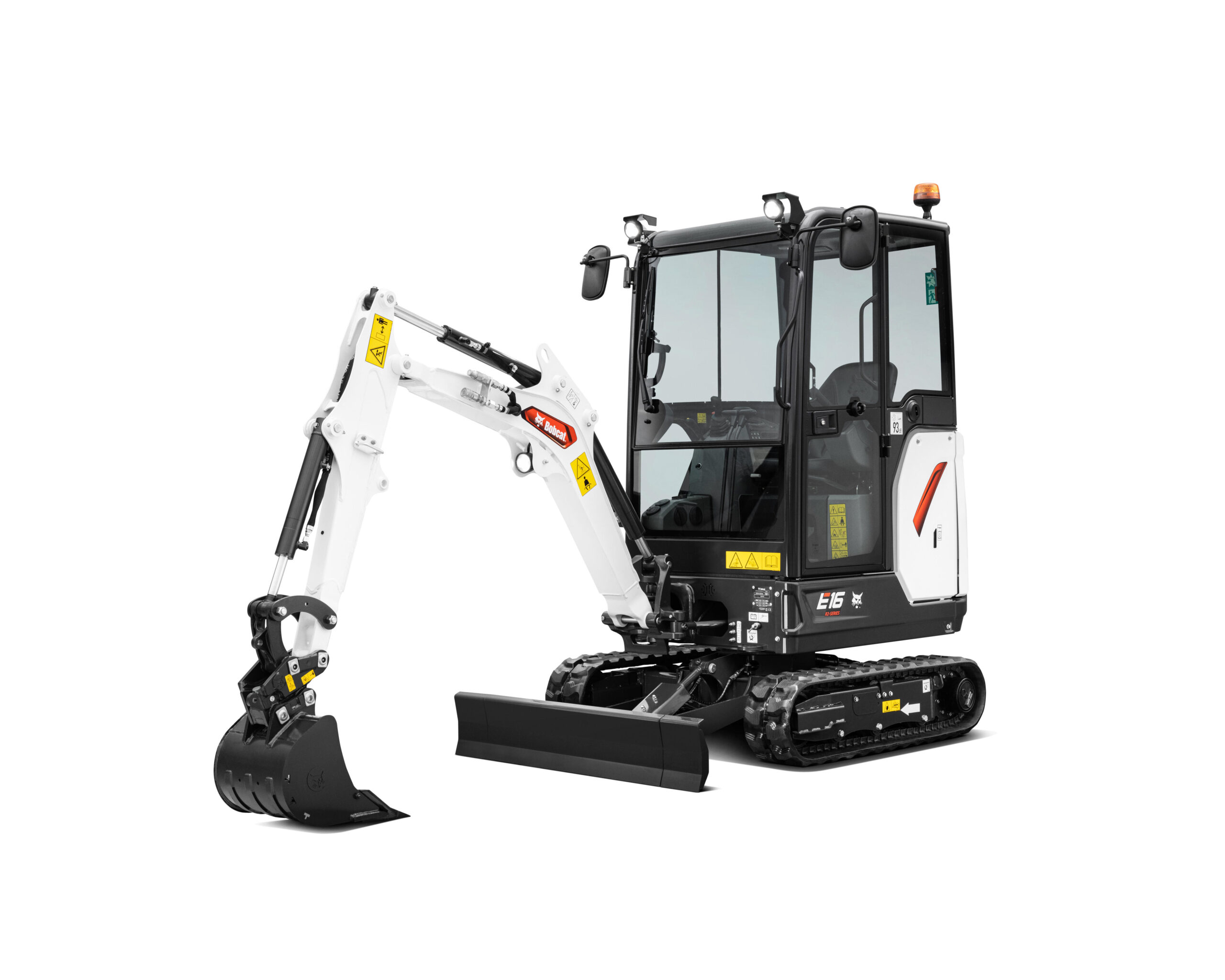

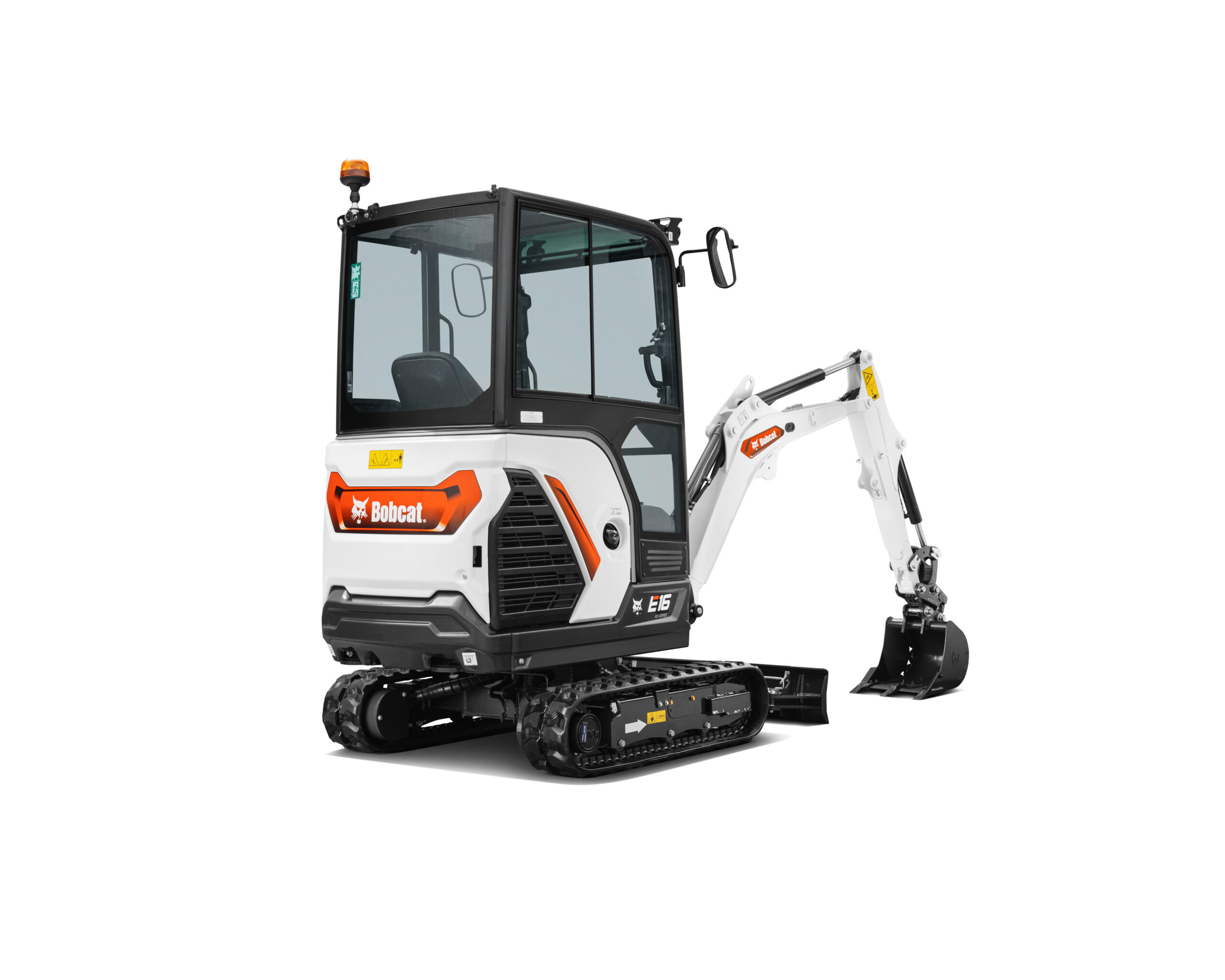

E16 R2 Series

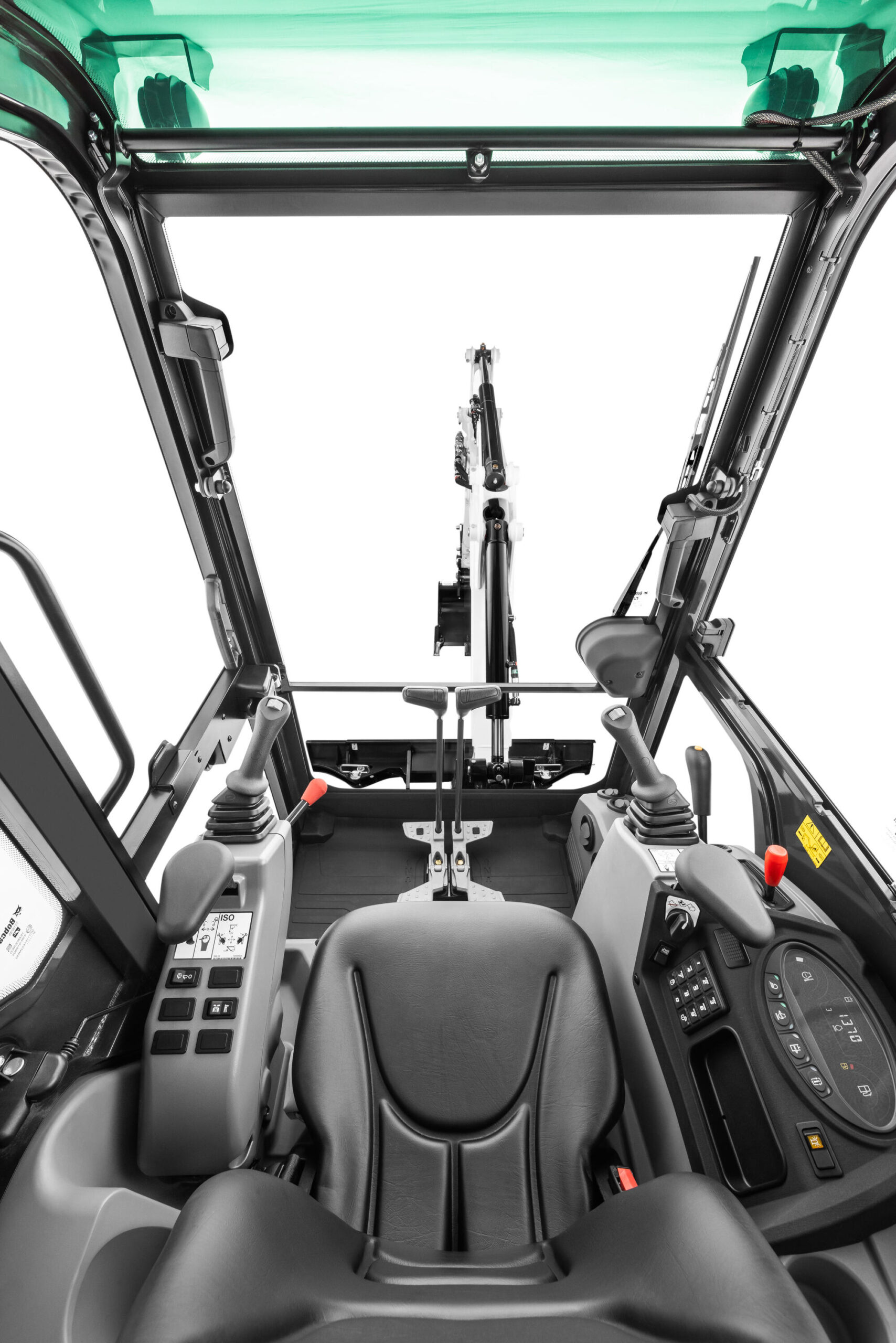

Small but mighty, the Bobcat E16 offers impressive power and maneuverability. Its retractable undercarriage and precise fingertip controls make it perfect for confined areas, while an upgraded engine and hydraulics provide added stability and efficiency.
Weights
| Operating weight with canopy and bucket (ISO 6016) | 1,612 kg |
| Transport mass (no attachment) | 1,495 kg |
| Additional weight for cab with heating | 99 kg |
| Ground pressure with rubber tracks | 27.7 kPa |
Working Range
| Maximum reach at ground level | 3,948 mm |
| Maximum blade height | 206 mm |
| Maximum blade depth | 254 mm |
| Maximum dump height | 2,390 mm |
| Maximum digging depth | 2,230 mm |
Dimensions
| Clearance, upper structure to ground line | 442 mm |
| Ground line to top of engine cover | 1,364 mm |
| Length of track on ground | 1,476 mm |
| Machine centre line to blade | 1,046 mm |
| Overall length in travel position | 3,704 mm |
| Blade width | 980 mm |
| Blade width (extensions extended) | 1,360 mm |
| Height | 2,321 mm |
| Minimum turning radius | 1,156 mm |
| Swing clearance, rear | 1,024 mm |

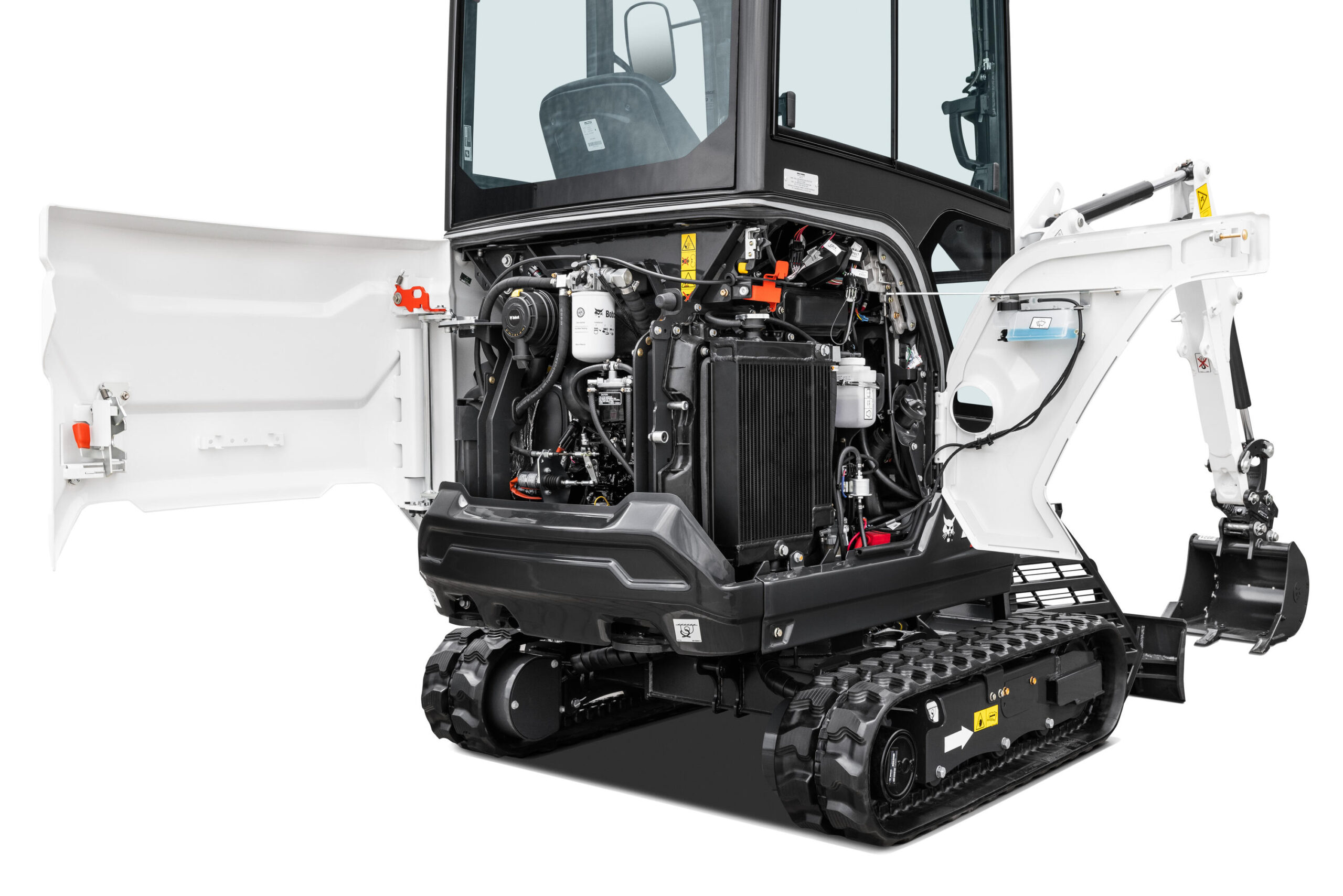

Engine
| Make / model | Yanmar / 3TNV70-SBC1 (Stage V) |
| Fuel | Diesel |
| Number of cylinders | 3 |
| Displacement | 0.854 L |
| Maximum power @ 2500 rpm (ISO 14396) | 10.1 kW |
| Maximum torque (SAE) | 49.8 Nm |
Performance
| Digging force, dipperstick (ISO 6015) | 11,920 N |
| Digging force, bucket (ISO 6015) | 14,550 N |
| Drawbar pull | 18,965 N |
| Travel speed, low range | 2 km/h |
| Travel speed, high range | 4 km/h |
Hydraulic System
| Pump type | Single outlet variable displacement, load sensing torque pump |
| Total hydraulic capacity | 44 L/min |
| Auxiliary flow | 30 L/min |
| Auxiliary relief | 180 bar |
Slew System
| Boom swing, left | 80 ° |
| Boom swing, right | 60 ° |
| Slew rate | 9.3 RPM |
Fluid Capacities
| Fuel reservoir | 21.2 L |
| Hydraulic reservoir | 14.3 L |
Environmental
| Noise level LpA(EU Directive 2006/42/EC) | 80 dB(A) |
| Noise level LWA(EU Directive 2000/14/EC) | 93 dB(A) |
| Whole body vibration (ISO 2631–1) | 0.24 ms-2 |
| Hand-arm vibration (ISO 5349–1) | 0.52 ms-2 |
