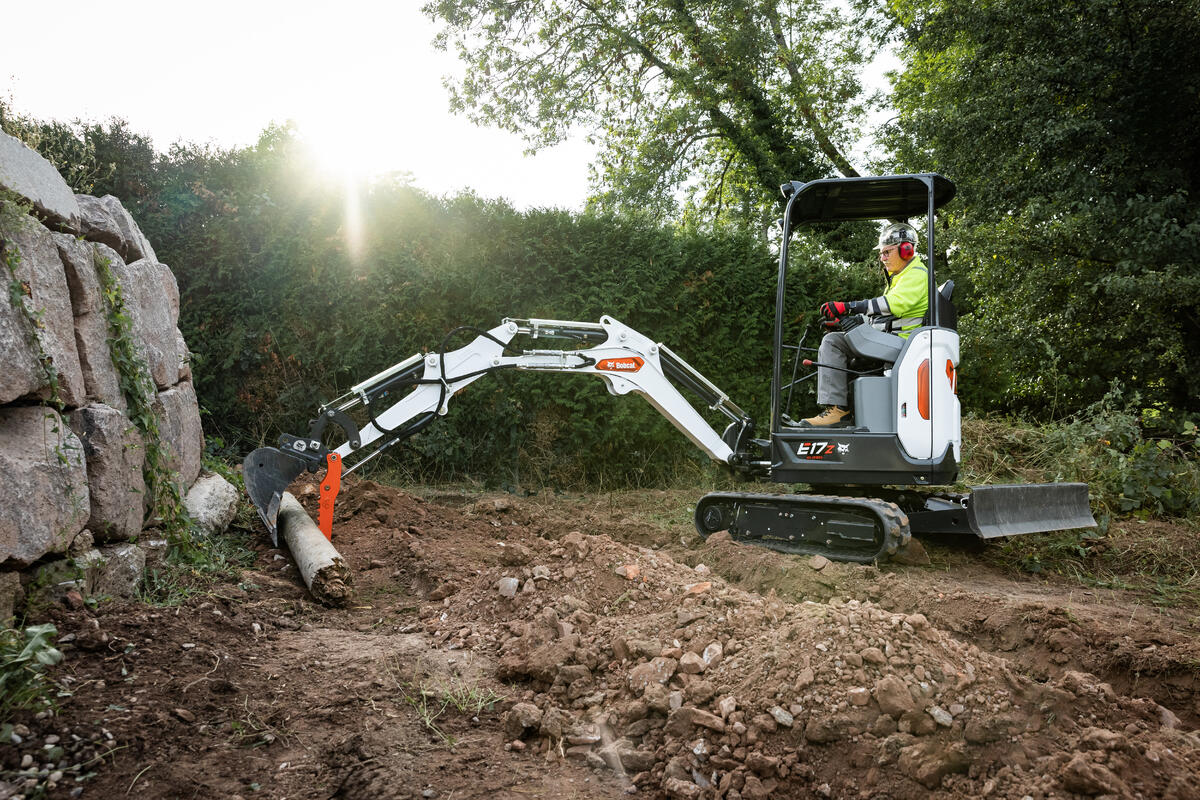

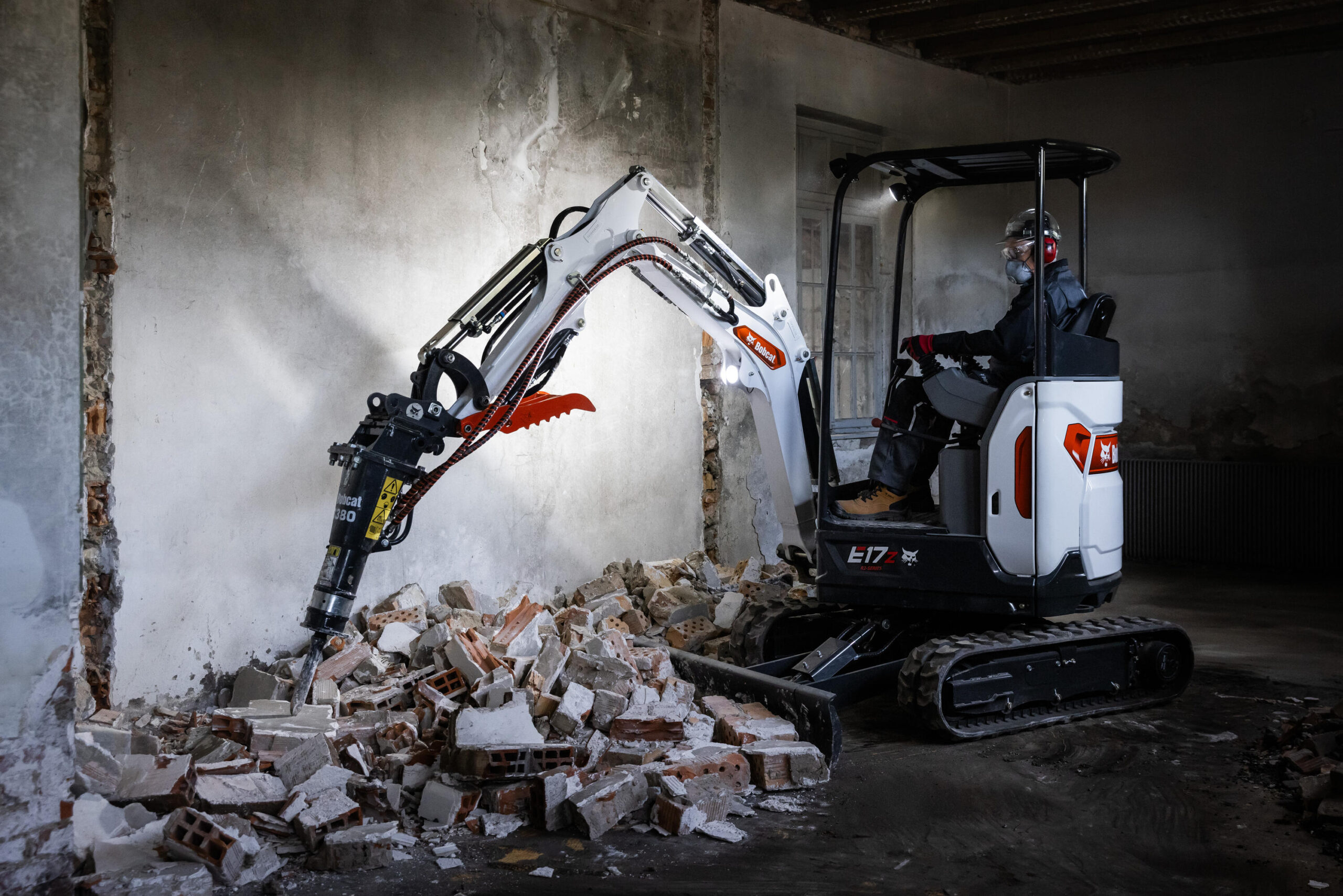

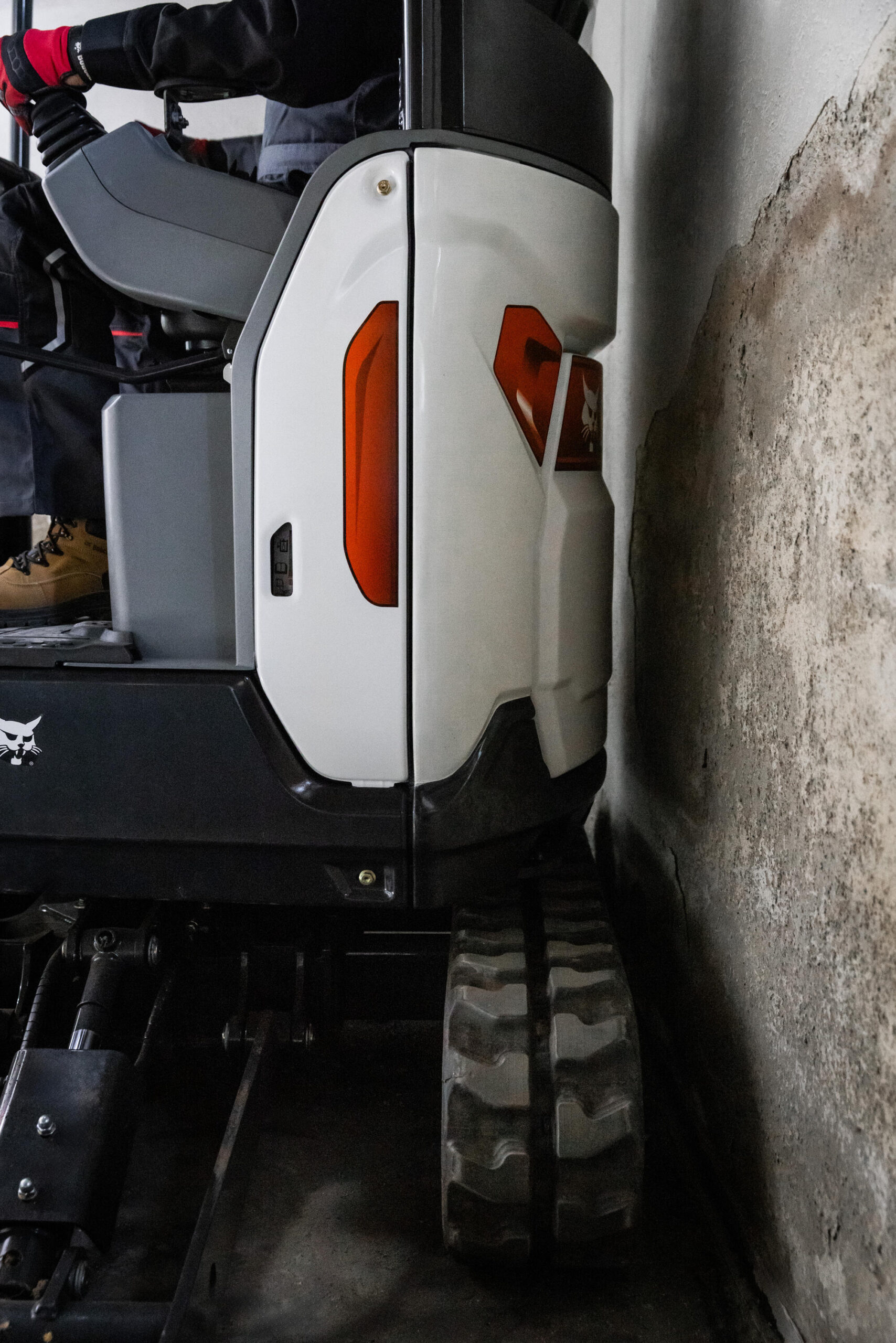

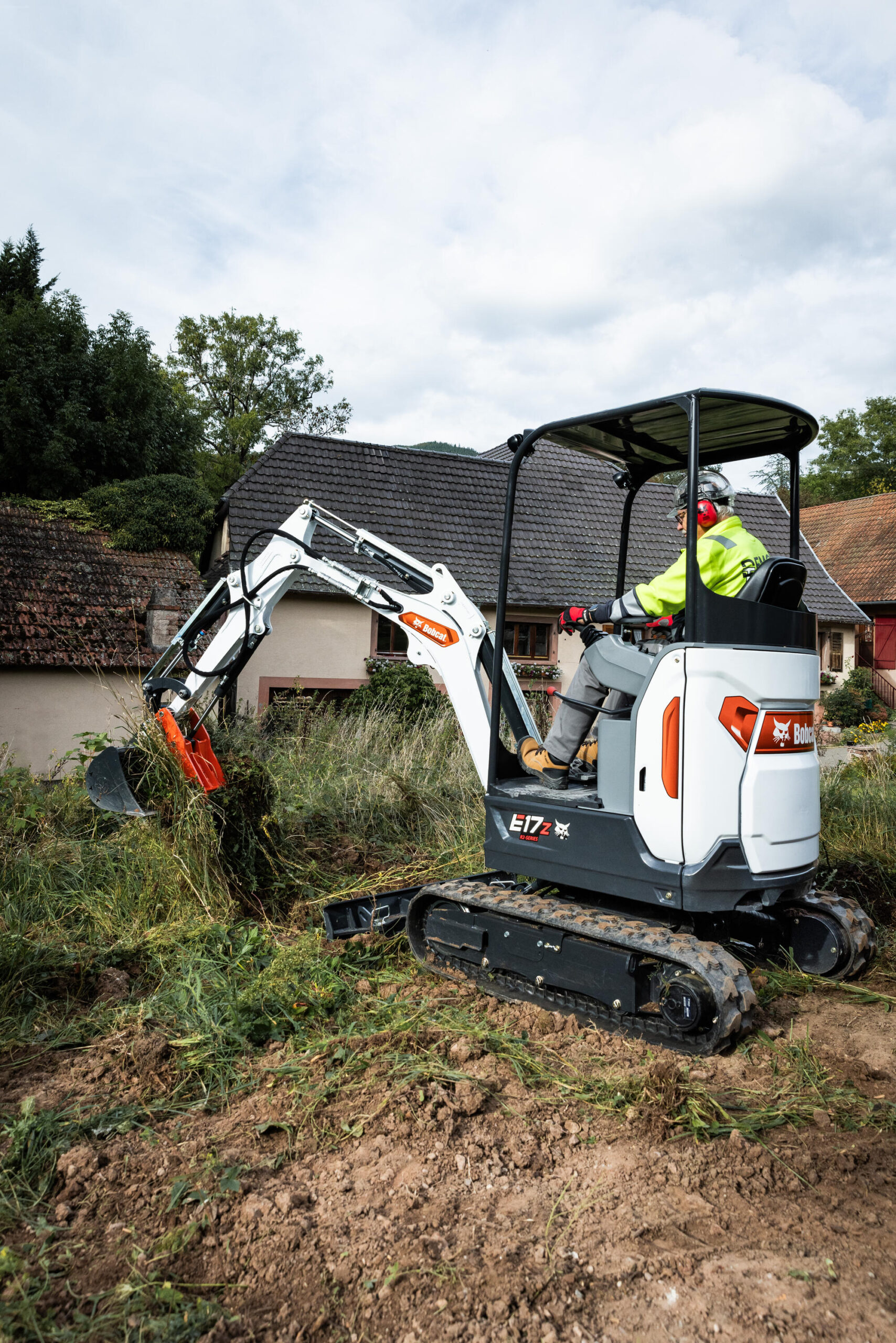

The Bobat® E17z compact excavator (mini excavator) provides an unmatched combination of features for a machine of this size, from ZTS (Zero Tail Swing) and the close to 1.6 tonnne; its impressive digging forces and working range; the smoothness of workgroup functions; the fast hydraulic performance in terms of low cycle times and its relaibility, durability and easy service access. The ZHS functionality on the E17z provides the peace-of-mind of 320° of free rotation when working close to walls and other obstruction, without sacrificing on operator comfort or performance.

Operating weight with canopy and bucket (ISO 6016) 1,749 kg
Transport mass (no attachment) 1,632 kg
Additional weight for long dozer blade 9 kg
Ground pressure with rubber tracks 30.1 kPa
Bucket pivot angle 196 °
Maximum reach of working equipment 3,971 mm
Maximum reach at ground level 3,923 mm
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted 1,560 mm
Maximum blade height 220 mm
Maximum blade height with long blade 300 mm
Maximum blade depth 204 mm
Maximum blade depth with long blade 254 mm
Maximum height of working equipment with dipperstick retracted 2,406 mm
Maximum bucket tooth height 3,378 mm
Maximum dump height 2,369 mm
Maximum depth of vertical wall which can be excavated 1,810 mm
Maximum digging depth 2,249 mm
Blade height 235 mm
Clearance, upper structure to ground line 419 mm
Ground line to top of engine cover 1,138 mm
Length of track on ground 1,114 mm
Machine centre line to blade 1,045 mm
Minimum radius in travel position 2,715 mm
Overall length of track assembly 1,476 mm
Overall length in travel position 3,450 mm
Track lug height 25 mm
Blade width 980 mm
Blade width (extensions extended) 1,360 mm
Height 2,297 mm
Track width 230 mm
Machine centre line to working equipment centre line, left-hand rotation 450 mm
Machine centre line to working equipment centre line, right-hand rotation 638 mm
Minimum turning radius 1,190 mm
Swing clearance, rear 690 mm
Working width at maximum right-hand rotation 1,532 mm
Working width at maximum left-hand rotation 1,370 mm
Make / model Kubota / D722-E4B-BCZ-7
Fuel Diesel
Number of cylinders 3
Displacement 0.7 L
Maximum power @ 2500 rpm (ISO 14396) 10.2 kW
Maximum torque (SAE) 43.5 Nm
Digging force, dipperstick (ISO 6015) 9,108 N
Digging force, bucket (ISO 6015) 16,177 N
Drawbar pull 19,302 N
Travel speed, low range 2.7 km/h
Travel speed, high range 4.3 km/h
Pump type Dual piston pump with gear pump
Total hydraulic capacity 41.3 L/min
Piston pump capacity 30 L/min
Auxiliary flow 30 L/min
Auxiliary relief 180.0 bar
Boom port relief base and rod end 210.0 - 290.0 bar
Boom swing, left 80 °
Boom swing, right 60 °
Slew rate 10.1 RPM
Cooling system 3.3 L
Engine lubrication plus oil filter 3.3 L
Fuel reservoir 19 L
Hydraulic reservoir 14.3 L
Hydraulic system 19 L
Noise level LpA(EU Directive 2006/42/EC) 81 dB(A)
Noise level LWA(EU Directive 2000/14/EC) 93 dB(A)
Whole body vibration (ISO 2631–1) 0.1 ms-2
Hand-arm vibration (ISO 5349–1) 0.5 ms-2
